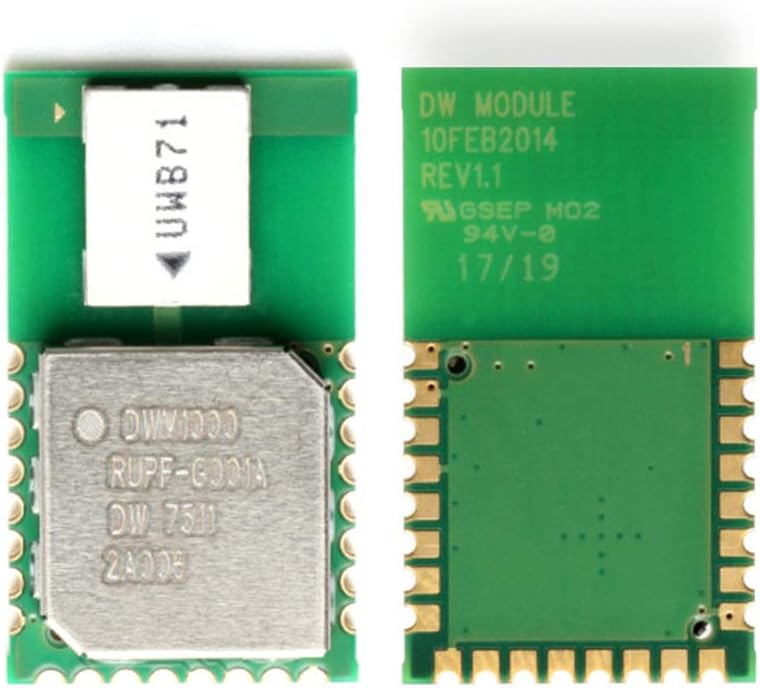

Taidacent UWB DWM1000 Positioning UWB Positioning Module Ultra Wideband Indoor Positioning Module Ultra Wideband Location

Main features: Compliant with IEEE 802.15.4-2011 UWB Supports 4 RF bands from 3.5 GHz to 6.5 GHz Programmable transmitter output power Fully coherent receiver, maximum range and accuracy Designed to comply with FCC and ETSI UWB spectrum masking Power supply voltage 2.8 V to 3.6 V Low power consumption 110 Kbps, 850 Kbps, 6.8 Mbps data rate For high data throughput applications, the maximum packet length is 1023 bytes Integrated Mac support Support two-way ranging and time difference SPI interface with the host processor 23 mm x 13 mm x 2.9 mm 24-pin side slot package Main advantages: Simplify integration without RF design Mark the precise location of objects to increase business efficiency cut costs Extended communication range minimizes the infrastructure required in RTL High multipath fading immunity Supports very high label density in RTL Low cost for cost-effective solutions Low power consumption reduces the need to replace batteries and reduces system life cost Application field: An accurate real-time positioning system (RTL) that uses a two-way ranging or time difference scheme in various markets. Location-aware wireless sensor network (WSN)

• UWB technology is a wireless carrier communication technology that uses a frequency bandwidth above 1 GHz.
• It does not use a sinusoidal carrier, but uses nanosecond-level non-sine wave narrow pulses to transmit data, so it occupies a large spectrum range.
• Although it uses wireless communication, its data transmission rate can reach hundreds of megabits per second or more.
• Compliant with IEEE 802.15.4-2011 UWB
• Supports 4 RF bands from 3.5 GHz to 6.5 GHz
